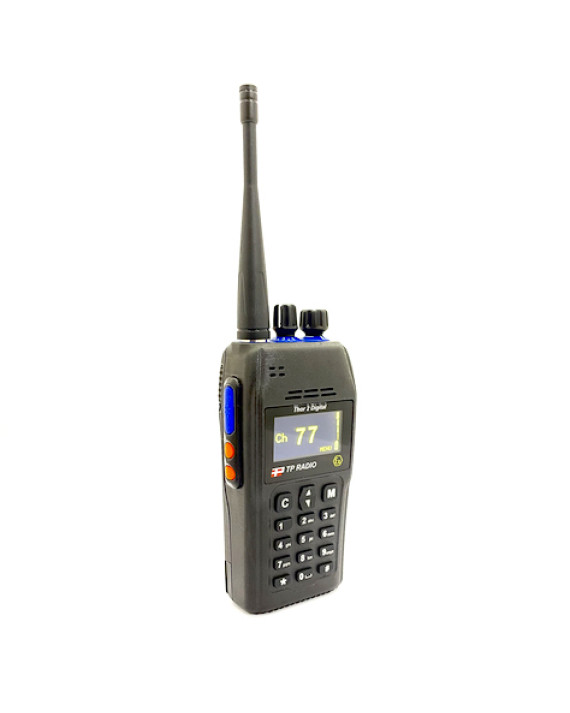

DMR T4 ATEX Portable w Display

€997.15

Incl. tax

Product code:THOR2_DIGITAL

Stock Status: In stock

TP9000Ex Digital(DMR) Intrinsically safe hand portable radio with OLED Display - mechanical robustness and our most advanced and best RX/TX module ever in a portable radio, makes this one of the best Digital ATEX portables on the market, with user friendly design and danish developed high quality audio performance.

Key features:
2 Watt TX Power
OLED Display
ATEX Intrinsically Safe
Digital radio(DMR)
Easy Programming
10-14-Hours Battery life
IP67(Submersible)
High quality Audio

Radio Package includes:
DMR ATEX Portable Radio with display
ATEX Battery
Antenna

*Frequency range:

* Required Fields

€997.15

Incl. tax

Functions

Userguide: English

Declaration of Conformity: English

TP Radio Intrinsically Safe Portable Radio - Confirms according to the Directives
RoHS 2011/55/EU & RED 2014/53/EU
Applied standards
EN 60950, EN/IEC 60945, EN 301.489, EN 300.086 & EN300.720 (analog part).
Classifications
IP67 Waterproof / MIL 810F

GAS RATING
ATEX: II 2 G Ex ib IIC T4 IECEx: Ex ib IIC T4

DUST RATING
ATEX: II 2 D Ex ib IIIC T110 °C IECEx: Ex ib IIIC T110°C

MINING RATING ATEX: I M2 Ex ib I IECEx: Ex ib I

Technical Data

Display option	With Display
Dimensions	H = 137, W = 64, D = 31mm
Antenna impedance	50 ohm
Channel Spacing	12,5 / 20 / 25 KHz
CTCSS / DCS	Yes
Dimensions incl. Battery	H = 137, W = 64, D = 31mm
Frequency error	± 2 ppm
Max. Deviation	± 5 KHz / 25 KHz channel
Mode of operation	Simplex/Semi-Duplex
Modulation distortion	< 5 % @ ± 3,0 KHz
Output power	Programmable 0.5 - 2 Watt
RF-bandwidth	64 MHz
Sensitivity	0,45 μV
Signal / noise ratio	40 dB
Squelch level	Programmable
Stand-by	5 % TX, 5 % RX & 90 % Standby 3000 mAh battery : 10-14 hours
Temperature range	-20 °C to +55 °C
Weight incl. Battery	310 g.
More info	See Download/Datasheet
