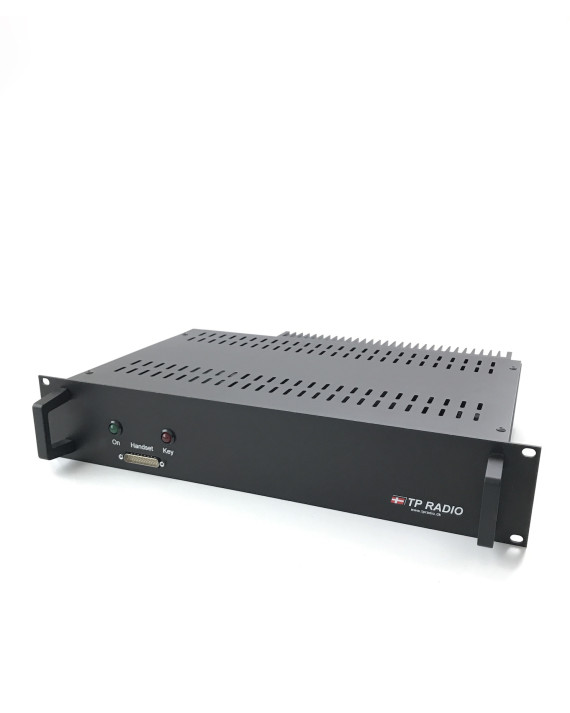

Repeater Base 19" Rack

Repeater Base 19" Rack
Repeater Base 19" Rack
€3,194.33
Incl. tax

Product code:RP2008/xxx

Stock Status: 2-7 days

A complete unattended repeater, built into a 2U 19-inch rack tray and ready to install. The TP6000i transceiver is available at 25, 50 or 100 W.

Everything needed is included: transceiver, duplex filter, power supply, back-up battery, tone system, mounting plates and cabling.

TP Radio also builds this rack for telephone link and patching systems, local control consoles and SCADA. Contact sales for a setup that matches your requirements.




* Required Fields

€3,194.33
Incl. tax

The kit contains

  • BK005 — 19" rack tray
  • RE605/x43i — TP6000i duplex transceiver for BS2000
  • DF60x — duplex filter
  • ST601 — coax cable kit for the duplex filter
  • MP002 — mounting plate for the duplex filter
  • PS005 — power supply
  • MP022 — mounting plate for the power supply
  • ST608 — coax cable N/BNC
  • IK651 — installation cable, plus and minus
  • ST640/5 — DC distribution cabling for BS2000
  • ST638 — cable for 19" rack radio

Options

  • TP-2263 — CTCSS tone encoder/decoder and repeater module
  • TP-2289 — 5-tone encoder/decoder and repeater control
  • ST609/5 — cable for power supply PS005, replaces SI601 and ST615/5
Antenna impedance 50 Ohm
Capacity Capacity
Channel Spacing 12,5 / 20 / 25 KHz
Charging current Charging current
Discharge Current Discharge Current
Frequency error ± 2 ppm (option +/- 0.1 ppm)
Mode of operation Duplex
Number of channels 128
Output power Adjustable high/low in two steps 5 - 25W - 50 & 100W available
RF-bandwidth 60 MHz 70 MHz 38 MHz 20 MHz
Stand-by 0,2 Amps at 13,2 VDC
Temperature range -25° to + 70°C
Voltage Voltage
Weight 1,2 Kg (Transceiver unit only)
More info See Download/Datasheet
