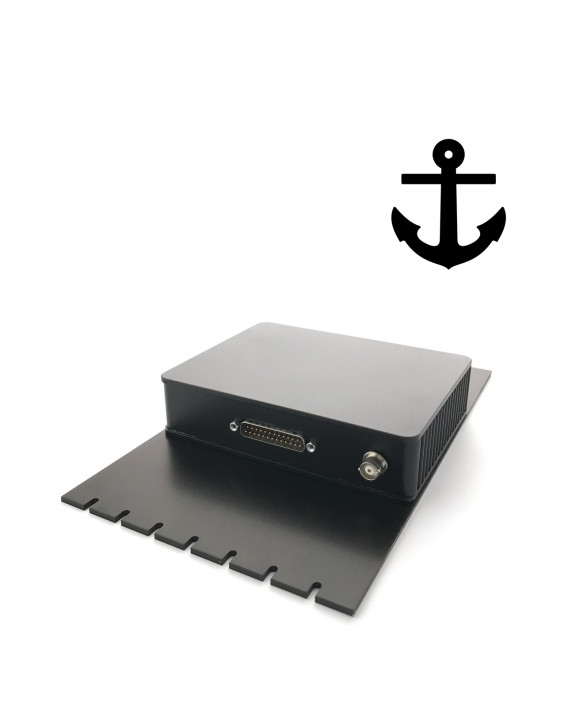

Maritime Transceiver EN301-929

Maritime Transceiver EN301-929
List Price

Product code:RE92x/xxx

Implement the EN 301 929 approved transceiver module into your own base station. The Maritime Tranceiver-module is designed for two-way voice and data communication in the VHF Maritime frequency band. The Tranceiver module is developed for use as a universal stationary communication unit at coasts and inland waterways and is used in TP Radios TP929M Base station.


- 100 Watt power out
- Can also be supplied on the operational frequencies: 144-155 MHz and 160-175 MHz (With almost same specifications)
- Please contact sales for further info


* Required Fields

List Price
This maritime high performance Tranceiver unit is specially designed for the Maritime VHF band and together with the modular structure from the BS2000 Base Station, the complete unit can be custom adapted according to the requirement. Specially designed with some of the highest electrical specifications and guarantee a reliable operation, even in long therm stress operation. - ETSI Standard EN 301 929
Dimensions W: 155mm, L: 135mm, H: 38mm
Antenna impedance 50 Ohm
Channel Spacing 12,5 / 20 / 25 KHz
Connector USB Interface
Data (Option) Yes, also available as DATA ONLY - please contact sales
Frequency error ± 2 ppm (option +/- 0.1 ppm)
Mode of operation Simplex / Semi-duplex / Duplex Nominal 13,2 VDC (240VAC with optional Power Supply) - please contact sales
Number of channels 128
RF-bandwidth 60 MHz 70 MHz 38 MHz 20 MHz
Stand-by 0,2 Amps at 13,2 VDC
Temperature range -25° to + 70°C
Weight 1,2 Kg (Tranceiver unit only)
More info See Download/Datasheet
